Flammability Testing Equipment For ASTM D5207-03 IEC 60695-11-3 And GB/T 5169.15 Standards

Flammability Testing Equipment For ASTM D5207-03 IEC 60695-11-3 And GB/T 5169.15 Standards
Flammability Testing Equipment For ASTM D5207-03 IEC 60695-11-3 And GB/T 5169.15 Standards

Duży Obraz :  Flammability Testing Equipment For ASTM D5207-03 IEC 60695-11-3 And GB/T 5169.15 Standards

Szczegóły Produktu:
Miejsce pochodzenia: Chiny
Nazwa handlowa: Haida
Orzecznictwo: CE,,ISO
Numer modelu: 6015-HD
Zapłata:
Minimalne zamówienie: 1
Cena: negocjowalne
Szczegóły pakowania: każdy zestaw zabezpieczony włóknem żywicznym i folią PP, a następnie umieszczony w mocnej drewnianej
Czas dostawy: 20 dni po potwierdzeniu zamówienia
Zasady płatności: L/C, T/T, D/A, D/P, Western Union, MoneyGram
Możliwość Supply: 300 zestawów miesięcznie

Flammability Testing Equipment For ASTM D5207-03 IEC 60695-11-3 And GB/T 5169.15 Standards

Opis
termoelement: Opancerzona termopara typu K-typu (NICR/Nial) z osłoną o średnicy 0,5 mm Regulator czasowy: Zakres regulowany: 0,01-99,99 sekundy
Średnica: Ø9,00 ± 0,01 mm Długość: 190,14±0,02 mm
Kąt skosu: 45 ± 0,5 ° Masa (wstępne upewnienie się): 10,00 g ± 0,05 g
Materiał: Miedź elektrolityczna o wysokiej przewodności Wykończenie powierzchni: W pełni wypolerowane
Podkreślić:

GB/T 5169.15 Flammability Testing Equipment

,

ASTM D5207-03 Flammability Testing Equipment

,

IEC 60695-11-3 Flammability Testing Equipment

Flame Temperature Calibration Device 500W

Product Description

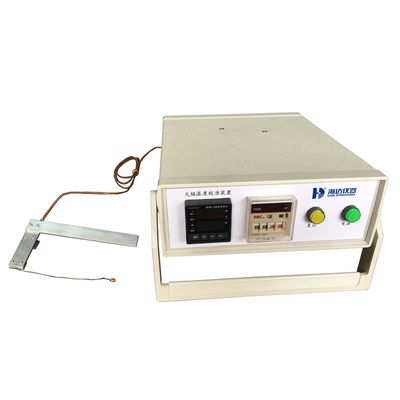

This calibration device is designed in accordance with ASTM D5207-03 and related IEC, UL, GB standards for measuring flame temperatures in combustion test equipment.

Calibration Procedure

Position the copper block 55±1mm above the needle flame burner. Ignite the flame; the time for the copper block temperature to rise from 100°C±2°C to 700°C±3°C must be 54±2 seconds to validate the flame for testing.
Perform three measurements, allowing the copper block to cool naturally to <50°C between tests.

Test standard

ASTM D5207-03: Standard Practice for Confirmation of 20-mm (50-W) and 125-mm (500-W) Test Flames for Small-Scale Burning Tests on Plastic Materials. GB/T 5169.15: Fire Hazard Testing for Electric and Electronic Products - Part 15: Test Flames - 500W Flame Apparatus and Confirmational Test Methods.
IEC 60695-11-3: Fire hazard testing for electric and electronic products - Part 11-3: Test flames - 500W flames - Apparatus and confirmational test methods.

Product Specifications
Model 6015-HD
Thermocouple Armored K-type (NiCr/NiAl) fine-wire thermocouple with a 0.5mm diameter sheath.
Timer Adjustable range: 0.01-99.99 seconds
Copper Block Specifications
Diameter Ø9.00±0.01mm
Length 19.14±0.02mm
Bevel Angle 45±0.5°
Mass (Pre-drilling) 10.00g±0.05g
Material High-conductivity electrolytic copper
Surface Finish Fully polished
Moel6001-
