Szczegóły Produktu:
|
Stosowanie: | Kontrola jakości i testowanie | Pojemność transformatora: | 1000va |
---|---|---|---|
Szybkość uderzenia: | 3,4 m/s | Pas startowy: | Długość 100 mm |
Rozmiar zewnętrzny: | 900*500*800 (w*d*h) | kąt uderzenia: | 90 stopni |
Tester temperatury: | Temperatura pokojowa do 200°C | Wymiar: | 650 mm × 400 × 830 mm |
Zakres czasu: | 3 min (można ustawić dowolnie) | Bieżący zakres pomiarowy: | 10pA~1mA |
Obciążenie osprzętu: | 2,5N | Tryb wytwarzania ozonu: | Generator ozonu lub metoda absorpcji UV |
poziomy: | 500 mm * 250 mm * 500m | Zakres grubości próbki: | 0 ~ 60 mm |
Rozmiar próbki: | 16mm, 6-15mm (G) | Obserwator: | CIE 10° Obserwator standardowy |
Specyfikacja: | 20-88HRA, 20-100HRB, 20-70HRC | Rozdzielczość ciśnienia: | 0,001 MPa (0,01bar lub 1PSI) |
Tryb badania A: | Temperatura pokojowa | Wyświetlacz: | Cyfrowy |
Prędkość testu: | Nastawny | Waga piłki: | 5 kg |
Wymiar zewnętrzny: | 95x150x105 cm | Udar wykrawający: | 25 mm |
Jednolitość temperatury: | ± 2 ℃ | Kontrolowanie dokładności: | ±0,2°C |
Podkreślić: | Thermal Conductivity Rubber Plastic Tester,research Rubber Plastic Tester,High Precision Rubber Plastic Tester |

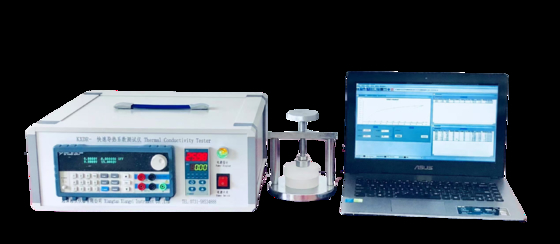

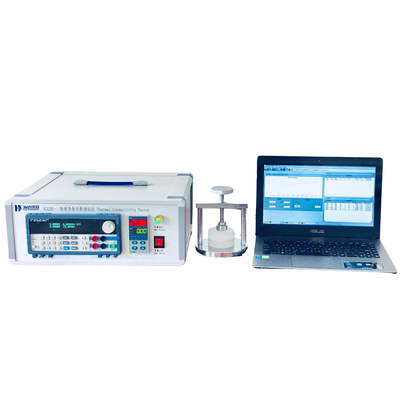

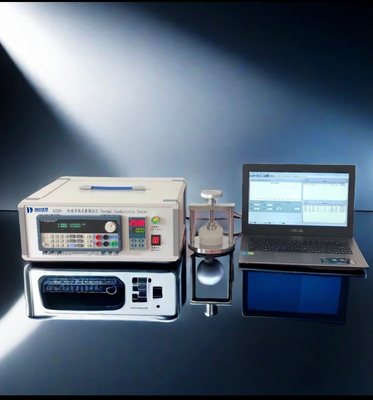

HD-KDRX-II Thermal Conductivity Tester
(Hot Wire Method)
Technical Parameters
Item | Parameters |
Thermal conductivity range | 0.0001~50 W/mK; resolution: 0.0001w/mk |
Measurement relative error | ≤3% |
Repeatability error | ≤3% |
Temperature resolution | 0.01℃ |
Measuring time | 2~180 seconds |
Sample test temperature range |
Room temperature (Various high and low temperature control chamber or test states under vacuum can be optional according to customer requirements) |
Tested samples | Plastic, soil, soft rock, liquid; paste, granule, powder and other materials |
Sample shape | Block, flake, paste, powder, granule, colloid, liquid (round, square, irregular shape, no restrictions on shape), only a relatively flat sample surface is required |
Sample size |
Cylindrical samples, ≥φ30 mm; Square samples, 30*30mm; Irregular samples, thickness ≥1mm |
Control mode | By computer and software |
Machine dimension | (L*W*H)380*400*165mm |
Machine weight | Approx. 5KG |
Power | AC 220V±10%, 50/60 Hz, 200W |
Why choose us?
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined
FAQ
Q: How about your warranty?
Q: What is the order process?
Q: Can we visit your factory before order?
Q: Do you accept customization service?
