Szczegóły Produktu:
|
Funkcjonować: | Test kompresji, test wytrzymałości na ściskanie papieru, tester serii, test rozciągania, przyrząd do | Nazwa: | Tester wytrzymałości na ściskanie na miseczkach papieru, testowiec testowy papierowy tester GSM/ tes |
---|---|---|---|
Wyświetlacz: | LCD, wyświetlacz cyfrowy | Jednostki przełączają się: | KGF, n. (Opcjonalnie), LBF |
Testowanie prędkości: | 10 ~ 200 mm/min | Wymiar: | 360*264*400 mm, 70*34*60 cm, 85*65*80 cm |
Zakres pomiarowy: | 250-5600 kPa, 10 ~ 1000 mn | Tryb wyświetlania: | Wyświetlacz LCD, tryb cyfrowy |
Kryteria projektowe: | ISO 2248, ASTM-D2210, Tappi T403, GB/T4857-92, JIS Z0202-87 | ||
Podkreślić: | bottle axis deviation tester,Accurate Bottle Axis Deviation Tester |
Parameter | Value |
---|---|
Sample Diameter | Positive claw 3-55mm, reverse claw 55-145mm |
Centering Chuck | Four-claw/three-claw optional |
Measuring Range | 0-12.7mm |
Resolution | 0.001mm |
Indication Error | ±0.005mm |
Measurement Error | ≤0.05mm |
Measurable Height | 5mm-400mm |
Weight | 20kg |
Dimensions | 330mm × 240mm × 240mm |

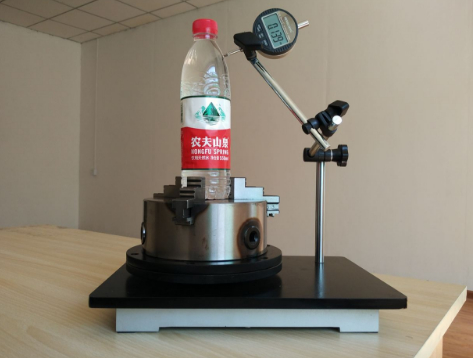

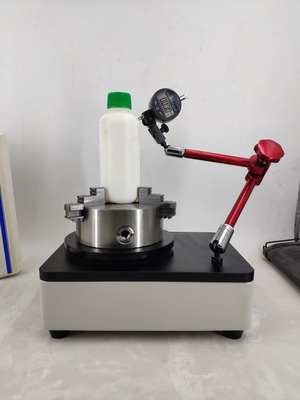

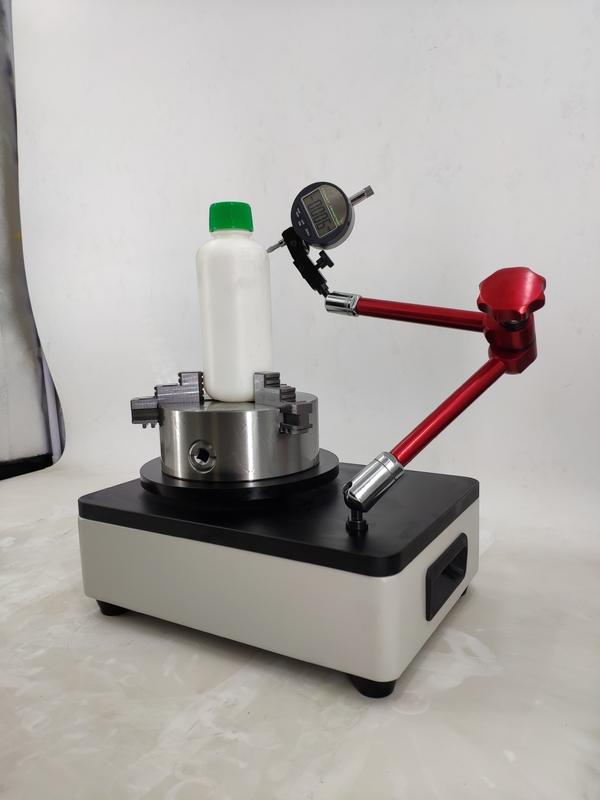

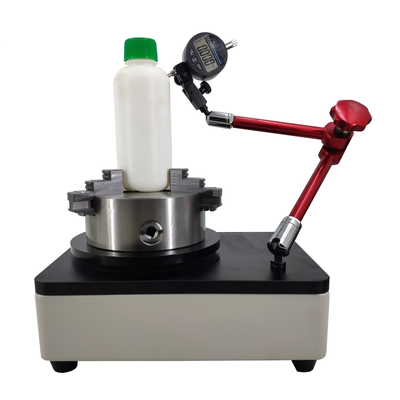

The bottle bottom is fixed on the rotating disk of the horizontal plate, with the bottle mouth contacting the micrometer. Rotating 360° reveals maximum and minimum values, with 1/2 of their difference being the vertical axis deviation value.
Ideal for bottle manufacturers, quality control departments, and research institutions in food, cosmetics, pharmaceutical, and packaging industries.
Haida products are widely used across paper goods, packaging, printing, adhesive tapes, footwear, electronics, plastics, and rubber industries. Our instruments comply with UL, ASTM, JIS, GB, and ISO standards, serving research institutions and quality inspection agencies worldwide.
