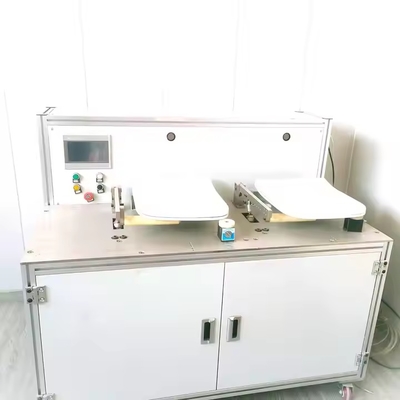

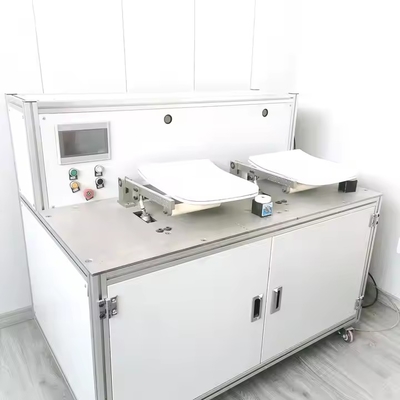

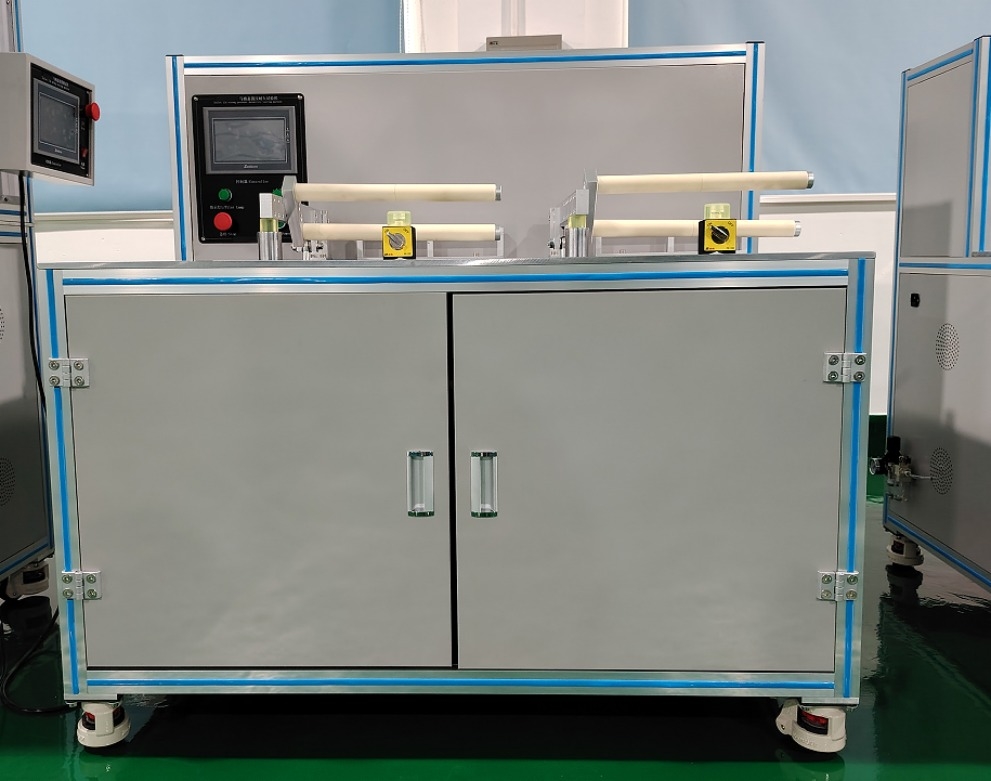

5066-HD Anti-Siphon Test Machine for Cookware Valves

5066-HD Anti-Siphon Test Machine for Cookware Valves
5066-HD Anti-Siphon Test Machine for Cookware Valves 5066-HD Anti-Siphon Test Machine for Cookware Valves 5066-HD Anti-Siphon Test Machine for Cookware Valves

Duży Obraz :  5066-HD Anti-Siphon Test Machine for Cookware Valves

Szczegóły Produktu:
Miejsce pochodzenia: CHINY
Nazwa handlowa: Haida
Orzecznictwo: ISO
Numer modelu: 5066-HD
Zapłata:
Minimalne zamówienie: 1 zestaw
Cena: negocjowalne
Szczegóły pakowania: każdy zestaw zabezpieczony włóknem żywicznym i folią PP, a następnie umieszczony w mocnej drewnianej
Czas dostawy: 20 dni po potwierdzeniu zamówienia
Zasady płatności: L/C, D/A, D/P, T/T, ZACHODNIE WESTOLA, Moneygram, w gotówce, wskaźnik
Możliwość Supply: 30 zestawów miesięcznie

5066-HD Anti-Siphon Test Machine for Cookware Valves

Opis
Utrzymanie temperatury wody: 60±2℃ Materiał korpusu zbiornika: 2 ~ 5 cykli na minutę
Rozmiar maszyny: 1350 mm * 1050 mm * 2550 mm Waga brutto: 210 kg
Źródło ciepła: Grzałka ceramiczna Ekran dotykowy: LCD
Podkreślić:

Cookware Valves Anti-Siphon Test Machine

,

Anti-Siphon Test Machine

5066-HD Anti-Siphon Performance Test Machine
Product Specifications
Attribute Value
Water temperature maintain 60±2℃
Tank body material 2~5 cycles per minute
Machine Size 1350mm*1050mm*2550mm
Gross Weight 210KG
Heat source Ceramic heater
Touch screen LCD
Applications & Test Purpose

This equipment is dedicated to testing the anti-siphon performance of water inlet valves. It features a transparent container between the sample and vacuum machine to collect water flow during failed siphon tests, protecting the vacuum machine from damage. The vacuum system simulates vacuum states in water supply pipelines to detect siphon phenomena in water inlet valves.

Compliance Standard

ASME A112.18.1-2018 CSA B125.1-18(C) 5.9

Standard Features
Feature Specification
Number of Workstations Single workstation
Test Pressure 0 ~0.1 PA (adjustable), 0.5% full scale accuracy
Pressure Adjustment Manual control
Observation Tube ID 13 mm
Immersion Depth 13 mm
Vacuum Generation Vacuum pump
Test Fixtures Customized per specification (≥2 pcs each)
Timer Range 0-99.99 (Hours, Minutes, seconds)
Dimensions 1000x1000x1600 mm
Power supply AC220V 50HZ
Weight Approx. 120 kg
About Haida International Equipment Co., Ltd

Established in 2004 and located in Dongguan city, Guangdong Province, China, Haida specializes in production and R&D of various material physical properties testing equipment. We have our own independent R&D center and four testing equipment production lines: textile, footwear, leather, and mask. Our testing equipment entered the international market in 2006.

5066-HD Anti-Siphon Test Machine for Cookware Valves 0
5066-HD Anti-Siphon Test Machine for Cookware Valves 1
5066-HD Anti-Siphon Test Machine for Cookware Valves 2
5066-HD Anti-Siphon Test Machine for Cookware Valves 3
5066-HD Anti-Siphon Test Machine for Cookware Valves 4
5066-HD Anti-Siphon Test Machine for Cookware Valves 5
