5062-HD Toilet Seat Impact Tester with LCD Screen

5062-HD Toilet Seat Impact Tester with LCD Screen
5062-HD Toilet Seat Impact Tester with LCD Screen 5062-HD Toilet Seat Impact Tester with LCD Screen

Duży Obraz :  5062-HD Toilet Seat Impact Tester with LCD Screen

Szczegóły Produktu:
Miejsce pochodzenia: CHINY
Nazwa handlowa: Haida
Orzecznictwo: ISO
Numer modelu: 5062-HD
Zapłata:
Minimalne zamówienie: 1 zestaw
Cena: negocjowalne
Szczegóły pakowania: każdy zestaw zabezpieczony włóknem żywicznym i folią PP, a następnie umieszczony w mocnej drewnianej
Czas dostawy: 20 dni po potwierdzeniu zamówienia
Zasady płatności: L/C, D/A, D/P, T/T, ZACHODNIE WESTOLA, Moneygram, w gotówce, wskaźnik
Możliwość Supply: 30 zestawów miesięcznie

5062-HD Toilet Seat Impact Tester with LCD Screen

Opis
Utrzymanie temperatury wody: 60±2℃ Materiał korpusu zbiornika: 2 ~ 5 cykli na minutę
Rozmiar maszyny: 1350 mm * 1050 mm * 2550 mm Waga brutto: 210 kg
Źródło ciepła: Grzałka ceramiczna Ekran dotykowy: LCD
Wymiary: 1100 mm*532 mm*389 mm Wyświetlacz: Ekran LCD
Czas testowania: Nastawny Odpowiedz dla Probme: W ciągu 24 godzin
Parametry testu: Temperatura, ciśnienie, waga itp. Wyniki badań: Dane ilościowe i jakościowe
Metody testowe: Uderzenie, ścieranie, odporność chemiczna itp. Wyświetlanie skali: 1 stopień
Stosowanie: Testowanie naczyń kuchennych pod kątem trwałości i bezpieczeństwa
Podkreślić:

Toilet Seat Impact Tester

,

Adjustable Time Toilet Seat Impact Tester

,

LCD Screen Toilet Seat Impact Tester

5062-HD Toilet Seat Falling Ball Impact Test Machine
Product Specifications
Attribute Value
Water temperature maintain 60±2℃
Tank body material 2~5 cycles per minute
Machine Size 1350mm*1050mm*2550mm
Gross Weight 210KG
Heat source Ceramic heater
Touch screen LCD
Dimensions 1100mm*532mm*389mm
Display LCD screen
Testing Time Adjustable
Reply For Problem Within 24 hours
Test Parameters Temperature, pressure, weight, etc.
Test Results Quantitative and qualitative data
Test Methods Impact, abrasion, chemical resistance, etc.
Scale Display 1 degree
Usage Testing cookware for durability and safety
Applications & Test Purpose

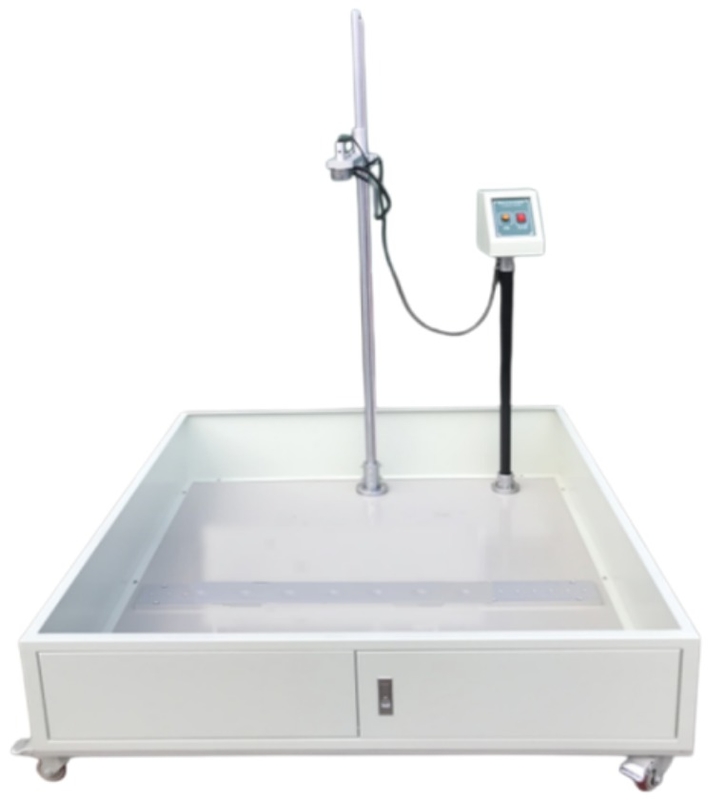

This machine is designed for measuring the impact resistance of electronics, electrical appliances, home appliances, plastics, communication devices, and other finished products or components during installation. It assesses product structural integrity by dropping a specified weight steel ball from a predetermined height onto test materials to observe damage levels.

Test Procedure

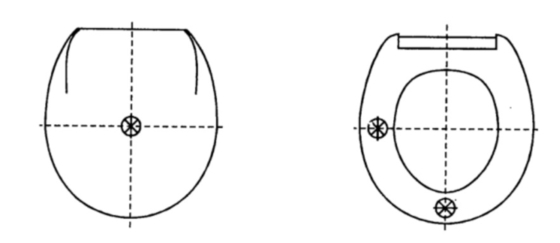

A 38mm diameter steel ball weighing 0.225kg is dropped freely from 455mm height onto the center of the test specimen. Impact positions are clearly indicated in the accompanying diagram.

Standard Compliance

JC/T 764-2008 5.4.7

Standard Features
Feature Specification
Impact height range 0-1000mm (manually adjustable, steel ruler shows scale)
Specimen size Toilet seat size
Drop height display Graduated steel ruler indicates vertically
Drop height accuracy 1mm
Drop bar shape Square rod
Control and lifting method Circuit-controlled electromagnet suction cup, manually lifting and lowering electromagnet fixing rod
Alignment device Infrared positioning for fixed-point testing
Impact ball specification 225g (φ38mm)
Control box Protective mesh box around the bottom
Volume Approx. 1000*1000*1050mm
Power Supply AC220V 50Hz
About Haida International Equipment

Established in 2004 and located in Dongguan, Guangdong Province, China, Haida International Equipment specializes in R&D and production of material physical properties testing equipment. With independent research centers and four production lines (textile, footwear, leather, and mask testing equipment), we've served international markets since 2006.

5062-HD Toilet Seat Impact Tester with LCD Screen 0
5062-HD Toilet Seat Impact Tester with LCD Screen 1
5062-HD Toilet Seat Impact Tester with LCD Screen 2
5062-HD Toilet Seat Impact Tester with LCD Screen 3
5062-HD Toilet Seat Impact Tester with LCD Screen 4
5062-HD Toilet Seat Impact Tester with LCD Screen 5
Why Choose Haida International?
  • Design & Production: Custom solution consultation, cost-performance recommendations, and special model R&D
  • Shipping & Delivery: One-stop service from production to door delivery, including installation and training
  • Warranty: 1 year warranty with lifetime technical support
  • After-Sale Service: 2-hour response time with video inspection and on-site service options
Frequently Asked Questions
Q: How about your warranty?

A: Our standard warranty is one year, including technical support and parts replacement. If necessary, our engineers can provide on-site service.

Q: What is the order process?

A: Inquiry → Quotation → Requirements confirmation → Order confirmation → Payment → Production → Testing → Packing → Documentation → Delivery → Receiving → After-sales service.

Q: Can we visit your factory before ordering?

A: Yes, we welcome factory visits and can assist with hotel arrangements and airport transfers.

Q: Do you accept customization service?

A: Yes, we offer both standard and fully customized machines tailored to your specific requirements.
