5125-HD Burning Test Machine with Adjustable Armrests

5125-HD Burning Test Machine with Adjustable Armrests
5125-HD Burning Test Machine with Adjustable Armrests 5125-HD Burning Test Machine with Adjustable Armrests

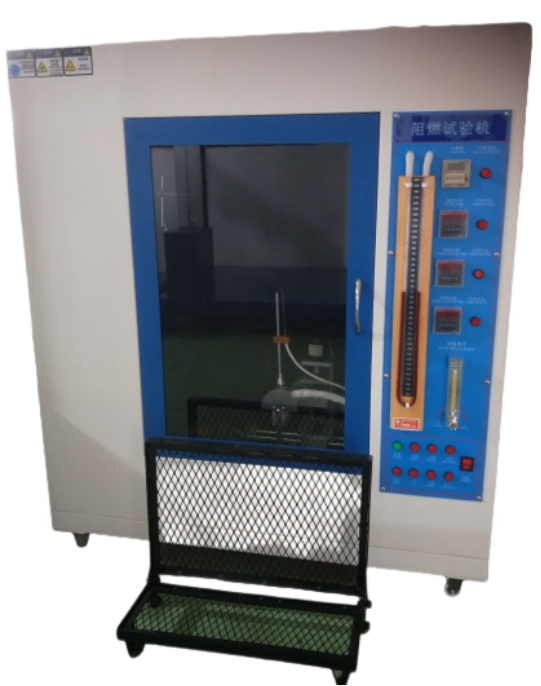

Duży Obraz :  5125-HD Burning Test Machine with Adjustable Armrests

Szczegóły Produktu:
Miejsce pochodzenia: Chiny
Nazwa handlowa: Haida
Orzecznictwo: CE、ISO
Numer modelu: 5125-HD
Zapłata:
Minimalne zamówienie: 1 zestaw
Cena: negocjowalne
Szczegóły pakowania: Każdy zestaw chroniony z włókna żywicy i folią PP, a następnie włożył mocną drewnianą obudowę z Oper
Czas dostawy: 20 dni po potwierdzeniu zamówienia
Zasady płatności: L/C, D/A, D/P, T/T, Western Union, Moneygram
Możliwość Supply: 300 zestawów miesięcznie

5125-HD Burning Test Machine with Adjustable Armrests

Opis
Tworzywo: Stal Funkcje opcjonalne: Konfigurowalna pojemność i wymiary
Słowo kluczowe: maszyna do testowania mebli Moc: Elektroniczny
Metoda testowania: Testowanie obciążenia dynamicznego i statycznego Zasilacz: AC/DC
używać: Krzesło Typ: Sprzęt testowy
Przełącznik jednostkowy: gf, kgf, N, LBf, W, KN, T Tryb jazdy: silnik o zmiennej częstotliwości i pasek rozrządu
Źródło zasilania: Elektryczność Wyświetlacz LCD: Tak
Regulowane podłokietniki: Tak
Podkreślić:

5125-HD Burning Test Machine

,

Burning Test Machine with Adjustable Armrests

5125-HD Burning Test Machine

 5125-HD Burning Test Machine with Adjustable Armrests 0

EQUIPMENT DETAILS













APPLICATIONS & TEST PURPOSE:

This device is suitable for determining the non-flammability performance of samples under direct burning by specified fire sources.

The device consists of a control panel, air box, combustion nozzle, solenoid valve, high-voltage igniter, sample holder, gas pipe, gas source, flow meter, U-shaped manometer, and signal control lines (as shown in Figure 1). The entire combustion test process of this machine is fully automated, such as electronic ignition, flameout time, combustion time, and number of combustions can all be automatically completed.



STANDARD: ISO 7176-10.8;GB/T 18029.10-2009





STANDARD FEATURES

Item

Specification

Nozzle inner diameter

6.5mm

Length

200+10mm

Test inclination angle

20,45,90 degrees with manual switching

Flame height

adjustable from 20mm to 175mm

Flame application time

adjustable from 0-999.9s+0.1s

Afterflame time

0-999.9s+0.1s,automatically recorded, manually paused

Afterbum time

0-999.9s+0.1s,automatically recorded, manually paused

Combustion gas

98% methane gas or 989 propane gas (usually liquefied petroleum gas can be used as a substitute)

Flow and pressure

flow meter and U-shaped pressure gauge

Test background

black background

Test process

manual control of the test program, independent ventilation

Chamber volume: 0.5 cubic meters (standard 0.5 cubic meters, 20 cubic meters customizable)

Chamber volume

0.5 cubic meters (standard 0.5 cubic meters, 20 cubic meters customizable)

Cabinet material

mirror stainless steel

Equipment dimensions

1000mm x 650mm x 1300mm(L*W*H)



5125-HD Burning Test Machine with Adjustable Armrests 1
