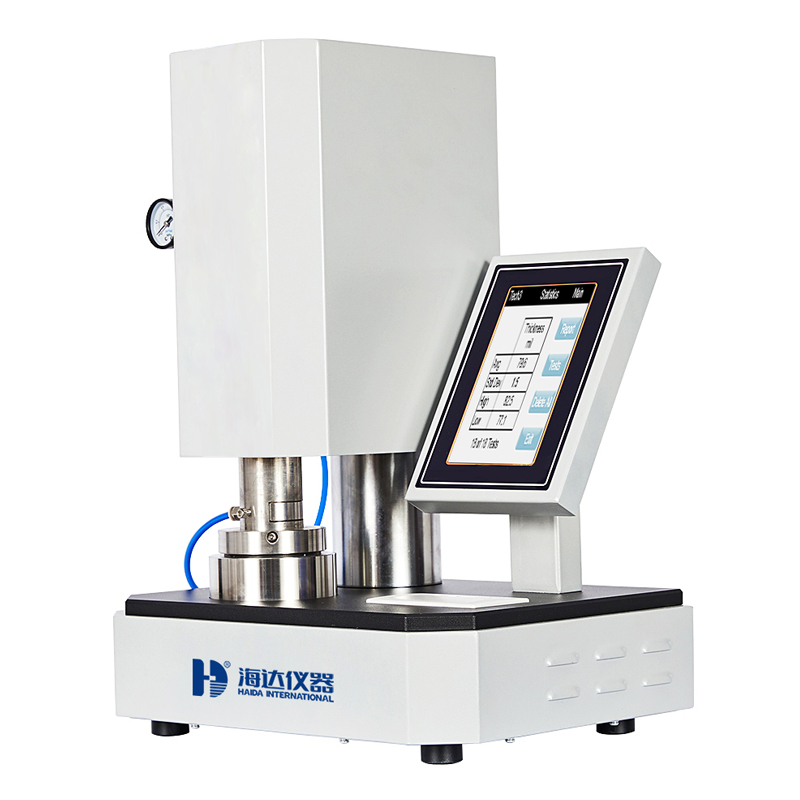

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)

Orzecznictwo
Chiny Hai Da Labtester Certyfikaty
Chiny Hai Da Labtester Certyfikaty
Opinie klientów
Tak, dostaliśmy maszynę w zeszłym tygodniu. Ta maszyna była przyjemna, a dzięki serwisem posprzedażowym była bardzo profesjonalna.

—— Peter Maas

W imieniu firmy odwiedzić swoje fabryki i firmy, personel techniczny jest bardzo profesjonalny i cierpliwy, myślę, że byłbym szczęśliwy, aby współpracować z tobą ponownie.

—— Steve Hubbard

Im Online Czat teraz

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)
EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON) EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)

Duży Obraz :  EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)

Szczegóły Produktu:
Miejsce pochodzenia: CHINY
Nazwa handlowa: Haida
Orzecznictwo: CE,,ISO
Numer modelu: 5095-HD
Zapłata:
Minimalne zamówienie: 1
Cena: negocjowalne
Szczegóły pakowania: Każdy zestaw chroniony z włókna żywicy i folią PP, a następnie włożył mocną drewnianą obudowę z Oper
Czas dostawy: 20 dni po potwierdzeniu zamówienia
Zasady płatności: L/C, T/T, D/A, D/P, Western Union, Moneygram
Możliwość Supply: 300 zestawów miesięcznie

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)

Opis
Skuteczny rozmiar miejsca pracy: 280*170*120 mm Dokładność temperatury: ± 0,2 °C
Kąt wahadła: 150° Pojemność: 1-1.5,2-2.5/3-3,5 t/h
Siła wkładania: 0~50kg Tryb pomiaru czasu: Kontr-up, kontr-dół
Standardy projektowe: HS 80 ± 5 Prędkość testu: 5 ~ 60 cykli/minuty
kąt uderzenia: 90 stopni Długość wahadła: 200 mm
Dane usuwają: CPU Kąt obierania: 90 °
Mierzenie głowicy ostre: 35 °, 30 ° rozmiar pieca: Φ45 mm*350 mm

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON)

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON) 0

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON) 1



DESCRIPTION

Thickness tester is used for thickness determination of film.

DESIGN STANDATD

GB/T 6672,ISO 4593

PRODUCT FEATURES

1. One-click test, easy to operate.

2. Cotex-M4 processor, improve the response speed of the instrument, accurate and fast calculation.

3. Automatic measurement, statistics, print test results, and has a data saving function

TECHNICAL PARAMETERS

Item

Description

Display

7-inch touch screen display

Measure range

(0~2)mm

Resolution

0.0001mm

Indication error

±1um

Repeatability

±1um

Measuring parallelism

0.002mm

Contact area

50 mm2

Contact pressure

film (17.5 ± 1) kPa

Probe descent rate

0.5~10mm/s(adjustable)

Data storage

50 times test data

Result Output

USB flash drive data export

Print

Thermal printer

l Communication interface

USB, WIFI(2.4G)

Dimension

365x255x440 mm(L*W*H)

Net weight

27Kg




Haida International Equipment Co,Ltd

Haida International Equipment Co,Ltd was established in 2004, located in Dongguan city, Guangdong Province, China, is specialized in production and R&D of various material physical properties testing equipment. We have our own independent research and development center and four testing equipment production lines: textile, footwear, leather, mask. In 2006, textile, footwear, leather mask testing equipment officially put into production and entered the international market.

EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON) 2 EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON) 3 EQUIPMENT DETAILS OF 5095-HD FILM THICKNESS TESTER (MICRON) 4
WHY CHOOSE US?
  • Design & Production : Solution Consultation for each order
  • Recommend the most cost -performance machine
  • Research & Develop the suitable one for Special- designed Model.
  • Shipping & Delivery: One-Stop Service
  • Production- Deliver to your door - Installation & Training- Technical Support
  • Warranty
  • 1 year warranty with lifetime technology support
  • After-Sale Service
  • React within 2 Hours
  • Video inspection & on-site service combined
FAQ

Q: How about your warranty?

A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.

Q: What is the order process?

A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.

Q: Can we visit your factory before order?

A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.

Q: Do you accept customization service?

A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.
