Szczegóły Produktu:
|
| Standardy projektowe: | ASTM D646, JIS P8124, QB / T 1671 | Metoda operacyjna: | Kontrola mikrokomputerów |
|---|---|---|---|
| Minimalny odczyt: | 0.1 | Upuszczanie odchylenia: | ±10 mm |
| Rozdzielczość obciążenia: | 1/250 000 | Standardy testowe: | ISO, ASTM, Tappi |
| Test upadku: | Narożniki, krawędzie, powierzchnie próbki | Znamionowy kąt zginania: | ± 7,5 ° i ± 15 ° |
| Stosowanie: | Testowanie pakowania | Rozmiar sklejki: | H48in * D48in |
| Sprężone powietrze: | 6 kg/cm2 | Opcje obciążenia testowego: | 55G, 175G, 275G |
| Tryb napędu: | napędzane silnikiem | Rozdzielczość komórek obciążenia: | 1/250 000 |
| Podkreślić: | ASTM D646 Impermeability Tester,Impermeability Tester,5025-HD Automatic Impermeability Tester |
||
| Attribute | Value |
|---|---|
| Design Standards | ASTM D646, JIS P8124, QB / T 1671 |
| Operating Method | Microcomputer Control |
| Minimum Readout | 0.1 |
| Dropping Deviation | ±10mm |
| Load Resolution | 1/250,000 |
| Testing Standards | ISO, ASTM, TAPPI |
| Drop Test | Corners, edges, faces of sample |
| Rated Bending Angle | ± 7.5 ° and ± 15 ° |
| Usage | Packaging Testing |
| Plywood Size | H48in * D48in |
| Compressed Air | 6 kg/cm2 |
| Test Load Options | 55g, 175g, 275g |
| Drive Mode | power-driven |
| Load Cell Resolution | 1/250,000 |

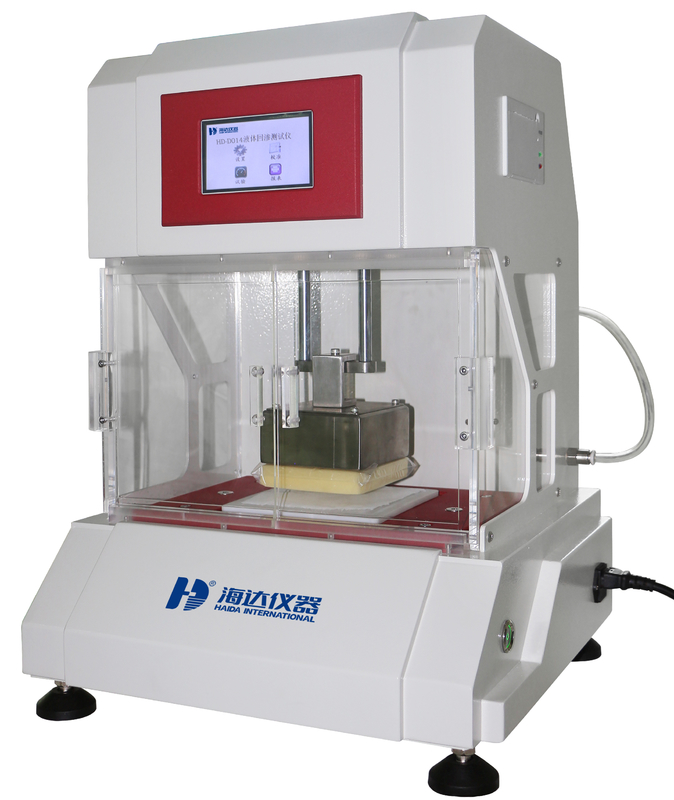

This tester is designed to determine the amount of diaper covering material that resists the rewetting of the liquid that has penetrated.
GB/T 24218.14 ISO 9073-14 WETBACK151.3-02
| Simulated baby load weight and size | 4000g±20g (10x10cm) |
| Test range and accuracy | 300g/0.001g |
| Testing speed | 5cm/(5±1)s |
| Placement and dwell time setting | 1~999s |
| Tray size | 170x170mm |
| Dimensions | Approx: 430 x 410 x 540 mm (LxWxH) |
| Weight | 51kg |
| Power source | 220V, 50Hz, 100W |
