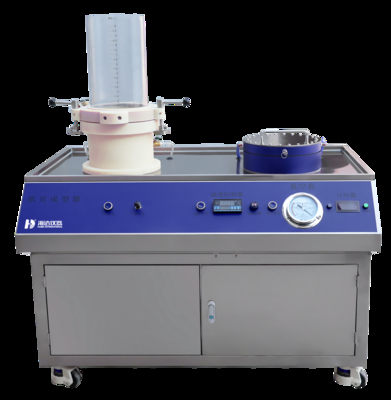

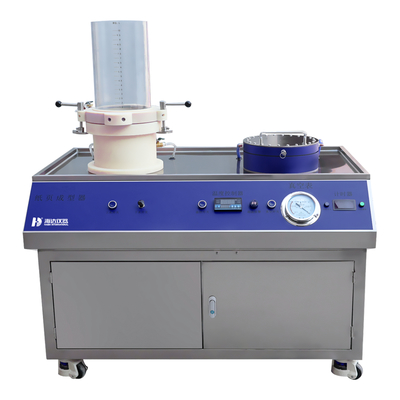

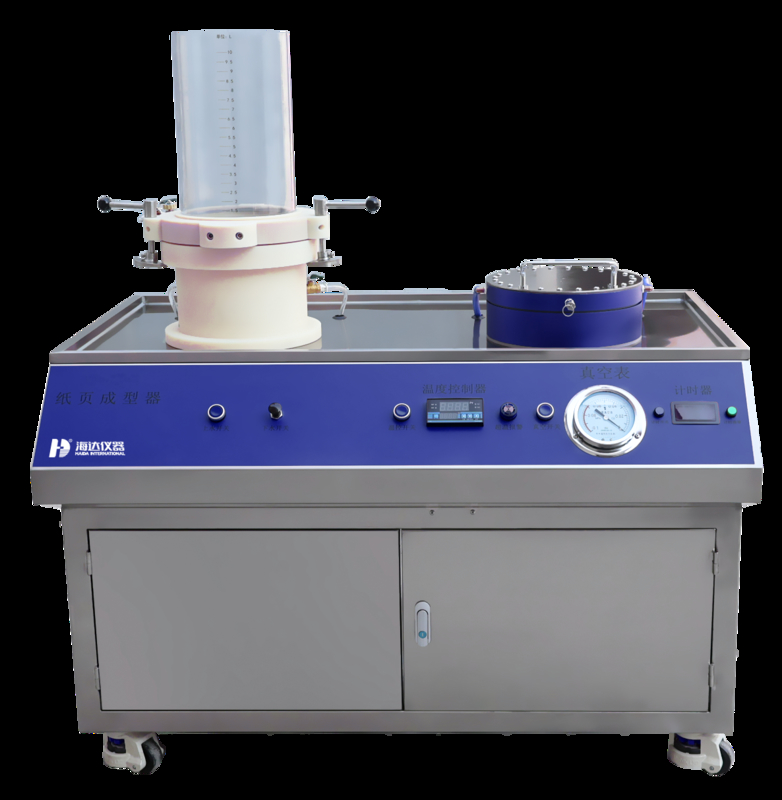

HD-P008 Sheet Former for Paper Compression and Burst Testing

HD-P008 Sheet Former for Paper Compression and Burst Testing
HD-P008 Sheet Former for Paper Compression and Burst Testing HD-P008 Sheet Former for Paper Compression and Burst Testing HD-P008 Sheet Former for Paper Compression and Burst Testing

Duży Obraz :  HD-P008 Sheet Former for Paper Compression and Burst Testing

Szczegóły Produktu:
Place of Origin: China
Nazwa handlowa: Haida
Orzecznictwo: CE、ISO
Model Number: HD-P008
Zapłata:
Minimum Order Quantity: 1 set
Cena: negocjowalne
Packaging Details: each set protected with resin fiber and PP film, then put into Strong wooden case with operation man
Delivery Time: 20 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 300 Sets per Month

HD-P008 Sheet Former for Paper Compression and Burst Testing

Opis
Funkcjonować: Test kompresji, test wytrzymałości na ściskanie papieru, tester serii, test rozciągania, przyrząd do Nazwa: Tester wytrzymałości na ściskanie na miseczkach papieru, testowiec testowy papierowy tester GSM/ tes
Wyświetlacz: LCD, wyświetlacz cyfrowy Funkcja: Łatwy w obsłudze
Metoda działania: Automatyczny Typ produktu: Instrumenty testowe
Urządzenie ochronne: Urządzenie ochronne typu indukcyjnego Kontrola: Kontrola PLC
Metoda wykrywania: Nadajnik ciśnienia Zatrzymywać się: Test Stop
Rozdzielczość siły: 1/500000 maksymalnej siły testowej FS Tryb wibracji: wzajemne
Ustawienie cykli testowych: 4 cyfrowy licznik wstępnie ustawiony
Podkreślić:

Burst Testing Paper Sheet Former

,

Paper Compression Sheet Former

,

Paper Sheet Former

EQUIPMENT DETAILS OF HD-P008 SHEET FORMER
HD-P008 Sheet Former for Paper Compression and Burst Testing 0
Product Attributes
Attribute Value
Function Compression test, Paper Tube Compressive Strength Test, Burst tester, Tensile test, Paper Testing Instrument
Name Paper cup tube compressive strength tester, Paper testing instrument paper gsm tester/bursting strength tester, Paper testing instrument
Display LCD, Digital display
Feature Easy to operate
Operation Method Automatic
Product Type Testing Instruments
Protection Device Induction type protection device
Control PLC control
Sensing Method Pressure Transmitter
Stop Stop test
Force Resolution 1/500000 of the maximum test force fs
Vibration Mode Reciprocating
Test Cycles Setting 4 digits pre-set counter
Application

This instrument complies with ISO5269/2 "Pulp - Preparation of Laboratory Paper for Physical Testing" Part II - Rapid Sheet Forming Method. It is used to prepare handsheets for testing physical properties and can also be used for wet sheeting of various fibers including glass fibers, carbon fibers, and nanomaterials. The machine integrates sheet copying, suction filtration, pressing, and drying functions, enabling the complete process from fiber to sample shaping on a single unit.

Standard Features
Inner diameter of round type pulp storage container ≥ 200mm
Water filtering copper mesh surface to water seal overflow edge 800+5mm
Water filtering copper mesh pressure hole (80 .100) optional (nano-fiber using the way of the tray network + filter paper)
Copper mesh clip material 304 stainless steel Copper mesh material: paper special phosphorus copper mesh
Volt weight 13kg hand-copied paper sheet pressure of 400kpa (volt roller press can increase the smoothness and uniformity of the paper)
Diameter of hand-copied paper sheet ∮200mm
Vacuum pump vacuum degree -0.092~-0.098MPa
Vacuum pressing force ≈0.1MPa

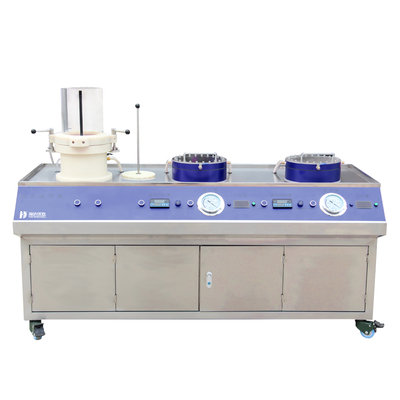

Drying station 1 (2 or more stations can be optioned)
Drying temperature ≤140℃ Digital arbitrary setting
Drying plate release mode Natural release (with self-absorbing function automatically absorbing after pressing together)
Drying time (quantitative 10-85g/m2) 3-6 minutes (varies for different fiber types with different moisture content of paper samples)
Heating power 2.5KW
Paper thickness range 10-200g/m2 0.05-3mm (varies for different fiber types)
Seal ring material Silicone
Water way Bottom water. The upper end of the water
Drainage method Pneumatic water release
HD-P008 Sheet Former for Paper Compression and Burst Testing 1
HD-P008 Sheet Former for Paper Compression and Burst Testing 2
HD-P008 Sheet Former for Paper Compression and Burst Testing 3
