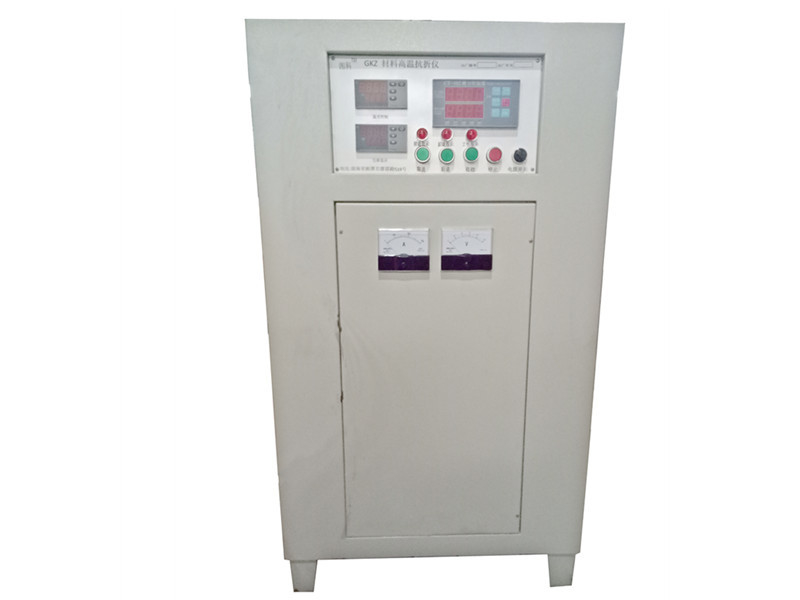

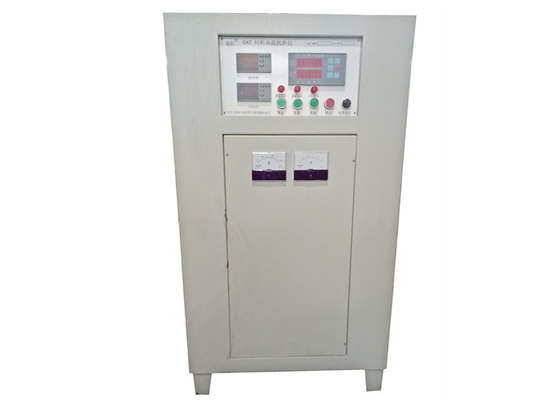

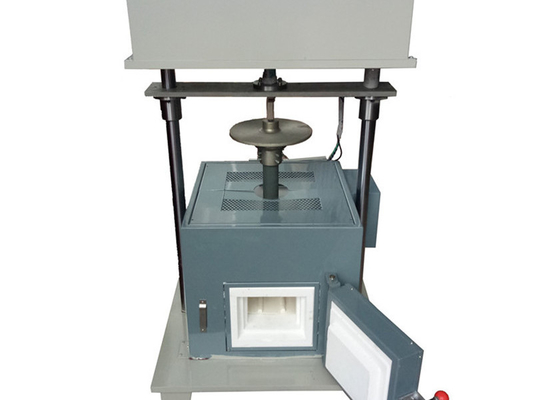

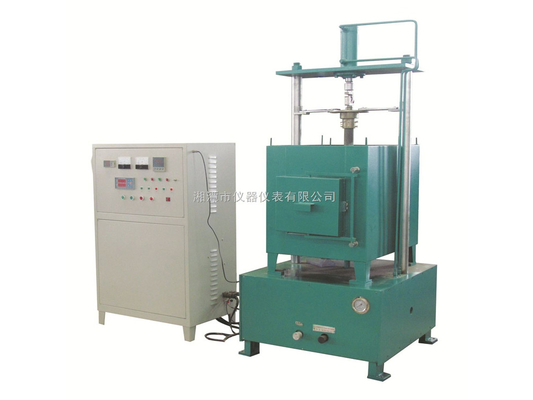

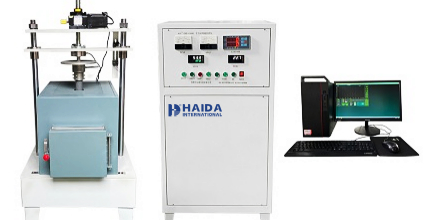

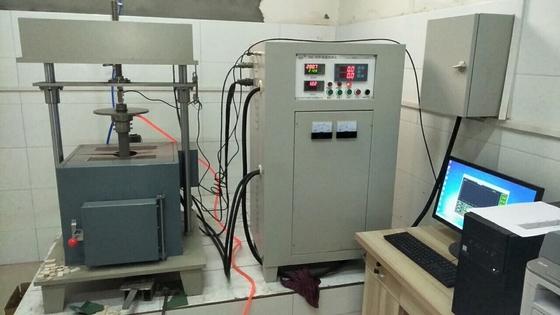

60095-HD Digital High Temperature MOR Machine for Refractory Testing

60095-HD Digital High Temperature MOR Machine for Refractory Testing
60095-HD Digital High Temperature MOR Machine for Refractory Testing 60095-HD Digital High Temperature MOR Machine for Refractory Testing 60095-HD Digital High Temperature MOR Machine for Refractory Testing 60095-HD Digital High Temperature MOR Machine for Refractory Testing 60095-HD Digital High Temperature MOR Machine for Refractory Testing 60095-HD Digital High Temperature MOR Machine for Refractory Testing

Duży Obraz :  60095-HD Digital High Temperature MOR Machine for Refractory Testing

Szczegóły Produktu:
Place of Origin: Guangdong, China (Mainland)
Nazwa handlowa: Haida
Orzecznictwo: ISO,CE
Model Number: 60095-HD
Zapłata:
Minimum Order Quantity: 1 Set
Cena: negocjowalne
Packaging Details: Export wooden case
Delivery Time: 15 days after order confirmed
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 30 Sets per Month Haida

60095-HD Digital High Temperature MOR Machine for Refractory Testing

Opis
Display Device: PC All Weight: 2800kg
Available Tensile Stroke: 900mm Unit Switchover: G, KG, N, LB
Weight: 500 kg Test Speed: 0.1~300mm/min
Usage: Tension Material Tension Strength Tester Resolution: 1/100,000
Test Space Height: 500 mm Crosshead Travel: 1000 mm
Force Reading: kgf, Ibf, N, KN, T etc Load Capacity: 5-200kg
Crosshead Speed Accuracy: ±0.2% Grip: Tensile grip, Tear force grip
Dimensions: 1200 mm x 800 mm x 1800 mm
Podkreślić:

200kg Load Capacity MOR Machine

,

Refractory Testing High Temperature MOR Machine

,

Digital High Temperature MOR Machine

60095-HD Digital High Temperature MOR Machine
Product Specifications
Attribute Value
Display Device PC
All Weight 2800kg
Available Tensile Stroke 900mm
Unit Switchover G, KG, N, LB
Weight 500 kg
Test Speed 0.1~300mm/min
Usage Tension Material Tension Strength Tester
Resolution 1/100,000
Test Space Height 500 mm
Crosshead Travel 1000 mm
Force Reading kgf, Ibf, N, KN, T etc
Load Capacity 5-200kg
Crosshead Speed Accuracy ±0.2%
Grip Tensile grip, Tear force grip
Dimensions 1200 mm x 800 mm x 1800 mm
Product Description

The 60095-HD Digital High Temperature MOR Machine is designed for testing high temperature flexural strength of various materials including refractory products, carbon-containing refractory materials, dense refractory castables, ceramic rollers, and other ceramics. Compliant with multiple industry standards including GB3002-2017, GB/T13243-1991, YB/T 5201-93, JB/T 2980.2-1999, and HB/T 5352.1-2004.

  • Computer-connected for automatic testing and data processing
  • Simple structure with stable force application and easy maintenance
  • Maximum temperature options: 1400℃ or 1600℃
  • Maximum load options: 1000N, 10000N, or 20000N
  • Temperature control accuracy: ±1℃
  • Automatic sample feeding mechanism for continuous testing
  • Can test 4-6 samples simultaneously
  • Voltage: 380V with power options of 8KW or 12KW
  • Heating elements: silicon carbon rod (1400℃) or silicon molybdenum rod (1600℃)
  • Generates test reports with print output capability
Standard Sample Sizes
  • GB3002-2017 shaped refractory material: 150/25/25mm × 6 pieces
  • GB3002-2017 unshaped refractory material: 160/40/40mm × 4 pieces
  • Lower blade spacing: 125±2mm
  • HB/T 5352.1-2004 investment casting shell: 40/20/6mm × 6 pieces
  • Lower blade spacing: 30mm
